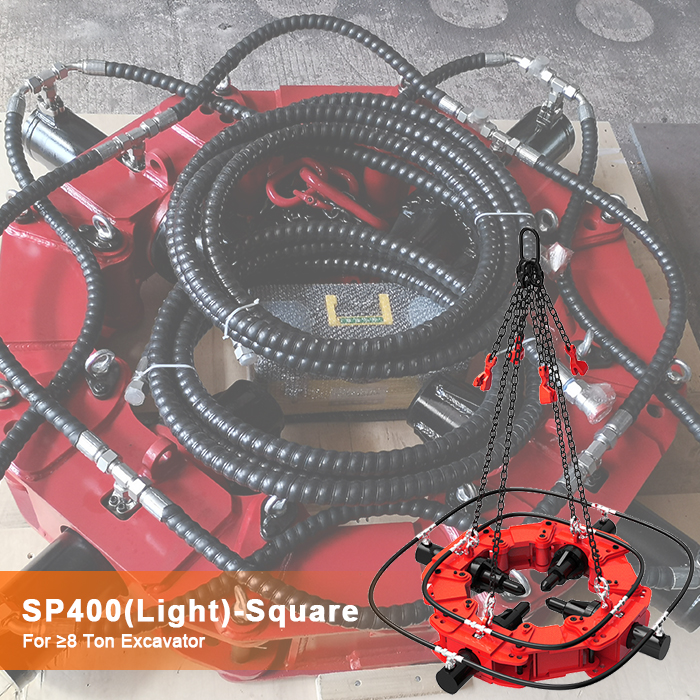

SP400
RAY Attachments
Availability: | |
---|---|
Do you tired to break the piles by manpower? Dangerous , Slowly , Noisy , Expensive salary and so on.
Don’t worry. Ray pile breaker will help you!
Your problems | How can we solve it? |
Dangerous | 1. Contact-free operation is enabled. 2. And it imposes no impact force on the parent body of the pile and no influence on the bearing capacity of the pile. |
Slowly | 1.Replaceable and changeable module combination makes its applicable for piles with various diameters. 2.The modules can be assembled and disassembled easily and conveniently. |
Noisy | Its full hydraulic drive causes little noises during operation and no influence on the surrounding environments |
Expensive salary | 1.Fewer operating workers are required to save cost for labor and machines maintenance during construction 2.Suitable for different kinds of carrier. 3.Module generalization is realized with our SP380 and SP400 square pile machine. It can be used for both circular piles and square piles by changing the module combination |
Durable? | 1. It is made of military material by first-class suppliers with reliable quality, extending its service life. 2.The mainboard used Q345B and the chisel used the 20CrNiMo3. 3.12 month free after-sales service. 4.Provide 3 sets wear parts for chisel. 5.Professional small tools for free. |
Model | Unit | SP400 (Light) | SP500 (Light) | SP600 (Heavy) | SP600-8 (Heavy) |
Range of pile breaker | mm | 300-400 | 400-500 | 300-550 | 600-800 |
Max force for single rod | KN | 320 | 320 | 790 | 790 |
Max stroke of hydraulic cylinder | mm | 150 | 150 | 205 | 205 |
Pressure of hydraulic cylinder | Mpa | 34.3 | 34.3 | 34.3 | 34.3 |
Max flow for single cylinder | L/min | 25 | 25 | 25 | 25 |
Max height for each crush | mm | ≤300 | ≤300 | ≤300 | ≤300 |
Suitable carrier | T | ≥8 | ≥15 | ≥20 | ≥26 |
Single moulde weight | kg | 110 | 220 | 400 | 700 |
Single module size | mm | 604*594*286 | 595*980*275 | 910*780*400 | 908×780×400 |
Dimensions at working | mm | 1600*1600*2000 | 1710*1710*2500 | 2050*2050*2000 | 2400*2400*2500 |
Total pile breaker weight | kg | 650 | 950 | 2000 | 3200 |
If you are interested in our hydraulic pile breaker, please tell us pile diameter which you will break, thegrade of concrete, round pile or square pile, the concrete reinforcement arrangement. We will introduce suitable model to you.
Welcome to visit our factory, If you have any questions, please feel free to contact me.
Wooden Box.
Deliery in 8 days after payment.
