Double ball joint cylinders, hydraulic damping. Main frame in special fine grain steel. Geometry with long levers, designed to obtain maximum power and closing speed. Extra-large pivot points and oversized pins for maximum reliability. Precise construction, solid stops both in opening and closing. Total ram protection, sealed by O-rings HARDOX 400 anti-wear steel teeth and tips State-of-the-art built-in hydraulic rotator
-
Europe, America, Asia.etc
-

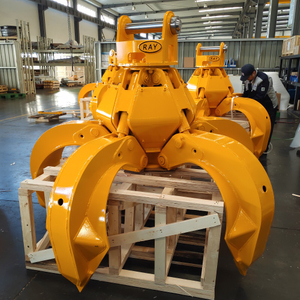

Orange peel grapples are gripping devices made up of a central frame on which 3 to 6 teeth are hinged. Each tine is moved by an independent hydraulic cylinder. All cylinders are connected to a single hydraulic circuit, which coordinates the opening and closing of the tines. Thanks to this conformation, when closing, all the teeth work with the same pressure force, although each of them can stop in a different position. For this reason, polyp grapples provide a firm grip on irregularly shaped objects, making them the most effective tool for handling loose materials such as scrap metal, municipal solid waste, industrial waste, production waste, paper, cardboard, plastic, firewood and tyres. Scrap grabs are also suitable for collecting scrap cars, large stones and boulders. The teeth, or jaws, come in three different shapes, depending on the width: closed, semi-closed (standard), and open. Standard tines are the most versatile, open tines are used for loading loose material and closed tines are for handling fine grained material. The geometry of the grapple derives from years of experience and is designed to guarantee maximum penetration into stacked materials and maximum load capacity.
-
Orange peel grapples, such as grab buckets, log grapples, kerbstone grapples and hydraulic forks, should be mounted to the running machine by a universal joint that allows oscillation in the longitudinal and lateral direction ("pendulum" style). This differentiates them from sorting and demolition grapples, which are instead mounted to the excavator arm via a rigid connection system.
-
According to excavator weight
-
Orange Peel Grapple is the perfect solution for material handlers in scrap yards, recycling plants and transfer stations. A 360° rotation system and 4- or 5-tine configuration efficiently and safely handle shredded scrap, waste, long structural beams, car bodies and many other materials.
-
Orange peel grapples are gripping devices formed by a central frame to which are hinged from 3 to 6 tines. Each tine is set in motion by an independent hydraulic cylinder. All cylinders are connected to a single hydraulic circuit, which coordinates the opening and closing of the tines.
-
Orange peel grapples are gripping devices formed by a central frame to which are hinged from 3 to 6 tines. Each tine is set in motion by an independent hydraulic cylinder. All cylinders are connected to a single hydraulic circuit, which coordinates the opening and closing of the tines.
-
S-jaws for sorting. Demolition and sorting grapples with plate-reinforced S-jaws are designed for recycling applications. Loose material does not stick so easily between the ribs. The jaws are very strong and are also suitable for demolition applications.
-
Europe, America, Asia.etc
-
Demolition Grapples are heavy-duty grapples designed for the demands of demolition - all sizes available to suit machines as small as 3 tonnes, up to 45 tonnes, various jaws/teeth available with replaceable bolt-on teeth .
-
High-performance strength meets state-of-the-art agility with the Extractor from RAY Attachments - the versatile demolition and sorting grapple capable of demolishing buildings, moving large volumes of material and picking up fine recyclables. Designed for tough jobs, the puller is made with Hardox Wear Plates and Strenx steel and moves higher volumes of material using less fuel - cycle after cycle The puller rotates 360 degrees and features flexible operation of the jaw with edge-to-edge contact, reversible cutting edges and zero clearance design for maximum productivity.
-
A demolition grapple does just what its name says: it grabs hold of scrap and debris and moves it out of the way, deftly handling a myriad of materials, from rebar to insulation.
-
A demolition grapple does just what its name says: it grabs hold of scrap and debris and moves it out of the way, deftly handling a myriad of materials, from rebar to insulation.
-
As one of the leading rock grapple manufacturers in China, RAY provides a complete line of rock grapple for 3-40 ton excavator. They are suitable for all kinds of excavator brands and models.
-
Stone grapple is a kind of excavator attachments which is mainly used for handling, moving, loading and arranging wood, stone, rock and other large waste.
-
According to excavator weight
-
The stone grab attachment on the excavator can be used to shift large stones, rocks, and scrap. Due to its sharp tines and cutting edges on the front, the mechanical grab can dig deep into the scrap in order to fully load the inner space of the grapple.
-
The stone grab attachment on the excavator can be used to shift large stones, rocks, and scrap. Due to its sharp tines and cutting edges on the front, the mechanical grab can dig deep into the scrap in order to fully load the inner space of the grapple.
-
Stone Grapple is an attachment that is mainly used for stones, rocks, and other large irregular shaped objects that need to be handled, moved and loaded onto a truck or other industrial vehicle.
