Pile Breaker

A pile breaker or pile chipping machine is a crucial piece of equipment used in construction projects involving piles. Piles are long, cylindrical structures made of concrete or steel that are used to provide foundation support for buildings and other structures. The process of breaking down piles is known as pile breaking, which is where the pile cutter or pile breaker comes in.

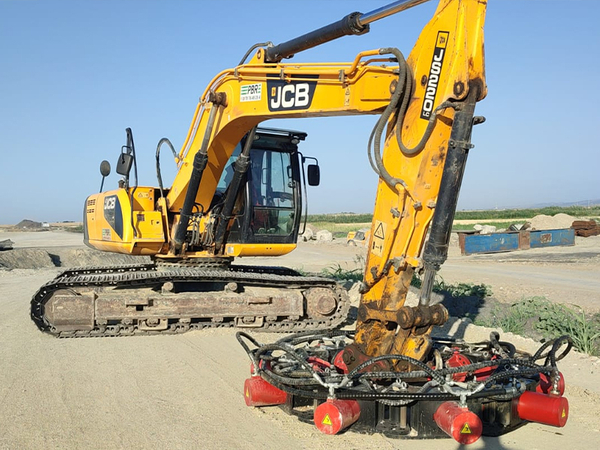

Mounted on an excavator, the pile cutter is a powerful machine that can easily cut through concrete piles with great precision and speed. The concrete pile construction process can be time-consuming and challenging, but with the use of a pile breaker, it becomes much easier and faster.

The pile breaker works by crushing the concrete pile at a specific point, causing it to break into small pieces. This is done using a hydraulic system that applies a powerful force to the pile, causing it to break cleanly and smoothly. The result is a pile that is cut down to the desired height, leaving a clean and smooth surface that is ready for further construction work.

Overall, the pile breaker is an essential tool in any construction project involving piles. Its ability to break down concrete piles quickly and efficiently saves time and money, while also ensuring that the construction project proceeds smoothly and safely.

Can't Find Ideal Pile Breaker For Your Industries?

We provide custom solutions to all our customers and offer pile breaker that you can take advantage of.

About RAY Attachments: Your Expert Pile Breaker Supplier

RAY Attachments is a leading manufacturer of Pile Breaker in China. All products' quality is strictly under control from processing to delivery. Through continuous innovation and improvement, the company has got ISO 9001, CE Certifications, and Technical Patents successively. Our products have been sold to widely domestic and overseas customers and long-term partnerships have been developed.

Pile Breaker Technical Parameters

 Pile Breaker Types

RAY square pile breaker



Square Type
RAY round pile breaker



Round Type

 Pile Breaker Specifictaion

RAY pile breaker (Square)

Model Unit SP400
(Light)		 SP500
(Light)		 SP600
(Heavy)		 SP600-8
(Heavy)
Range of pile breaker mm 300-400 400-500 300-550 600-800
Max force for single rod KN 320 320 790 790
Max stroke of hydraulic cylinder mm 150 150 205 205
Pressure of hydraulic cylinder Mpa 34.3 34.3 34.3 34.3
Max flow for single cylinder L/min 25 25 25 25
Max height for each crush mm ≤300 ≤300 ≤300 ≤300
Suitable carrier T ≥8 ≥15 ≥20 ≥26
Single moulde weight kg 110 220 400 700
Single module size mm 604*594*286 595*980*275 910*780*400 908×780×400
Dimensions at working mm 1600*1600*2000 1710*1710*2500 2050*2050*2000 2400*2400*2500
Total pile breaker weight kg 650 950 2000 3200

RAY pile breaker (SP380-Round)

Model Unit SP380 SP380 SP380 SP380 SP380 SP380
Moduld number modules 7 8 9 10 11 12
Range of pile breaker mm 300-400 450-500 550-625 650-750 800-900 900-1050
Max force for single rod KN 350 350 350 350 350 350
Max stroke of hydraulic cylinder mm 150 150 150 150 150 150
Pressure of hydraulic cylinder Mpa 32-35 32-35 32-35 32-35 32-35 32-35
Max flow for single cylinder L/min 25 25 25 25 25 25
Max height for each crush mm ≤300 ≤300 ≤300 ≤300 ≤300 ≤300
Suitable carrier T 12 13 15 21 21 21
Single moulde weight kg 110 110 110 110 110 110
Total pile breaker weight kg 920 1030 1500 1250 1360 1470

RAY pile breaker (SP800-Round)

Model Unit SP800 SP800 SP800 SP800 SP800 SP800 SP800 SP800
Moduld number modules 6 7 8 9 10 11 12 13
Range of pile breaker mm 500-600 650-800 850-1000 1050-1200 1250-1400 1450-1600 1650-1800 1850-2000
Max force for single rod KN 650 650 650 650 650 650 790 650
Max stroke of hydraulic cylinder mm 215 215 215 215 215 215 215 215
Pressure of hydraulic cylinder Mpa 32-35 32-35 32-35 32-35 32-35 32-35 32-35 32-35
Max flow for single cylinder L/min 25 25 25 25 25 25 25 25
Max height for each crush mm ≤300 ≤300 ≤300 ≤300 ≤300 ≤300 ≤300 ≤300
Suitable carrier T 20 22 26 27 30 32 35 36
Single moulde weight kg 380 380 380 380 380 380 380 380
Total pile breaker weight kg 2335 2720 3100 3480 3860 4240 4620 5000

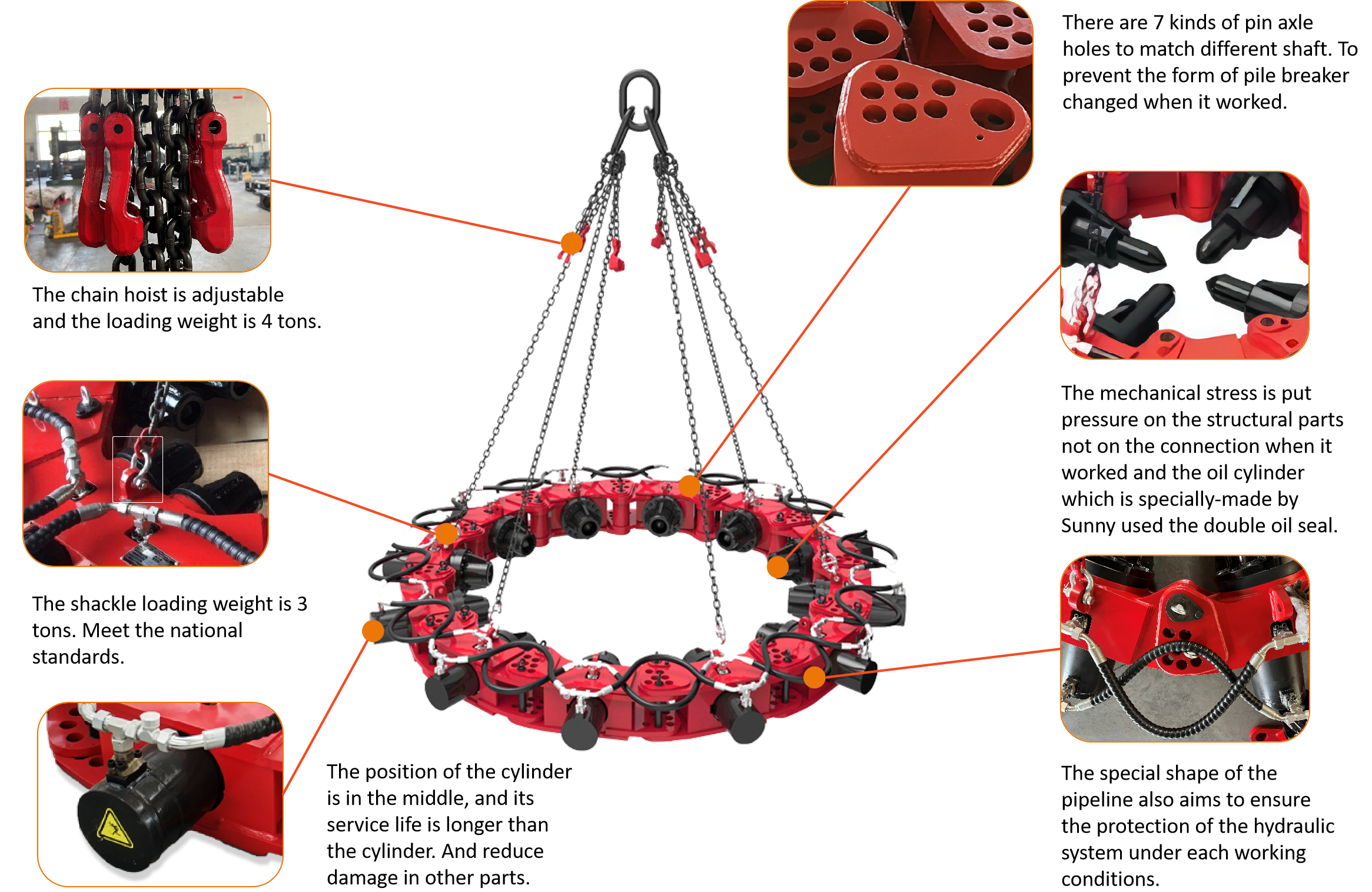

 Pile Breaker Advantages

1. High efficiency. Piles one day by man, 80 piles one day by RAY pile breaker.
2. Low noise,environment-friendly. Cacophony by electric hammer. It is little noises during operation with full hydraulic drive.
3. Low-cost. High labor costs. RAY pile breaker: Operation easily with fewer workers. Saving more time.
4. Safer. Manual operation risk is high, RAY pile breaker: Full automatic operation, it can be applied for construction on com-plex land-form.
5. Multi-function. Module generalization is realized with our SP380 and SP400-B square pile machine. It can be used for both circular piles and square piles by changing the module combination.

Your problems - How can we solve it?

 Dangerous
1. Contact-free operation is enabled.
2. And it imposes no impact force on the parent body of the pile and no influence on the bearing capacity of the pile.

 Slowly
1. Replaceable and changeable module combination makes its applicable for piles with various diameters.
2. The modules can be assembled and disassembled easily and conveniently.
 Noisy
Its full hydraulic drive causes little noises during operation and no influence on the surrounding environments.


 Expensive salary
1. Fewer operating workers are required to save cost for labor and machine maintenance during construction.
2. Suitable for different kinds of carrier.
3. Module generalization is realized with our SP380 and SP400-B square pile machine. It can be used for both circular piles and square piles by changing the module combination.
 Nondurable

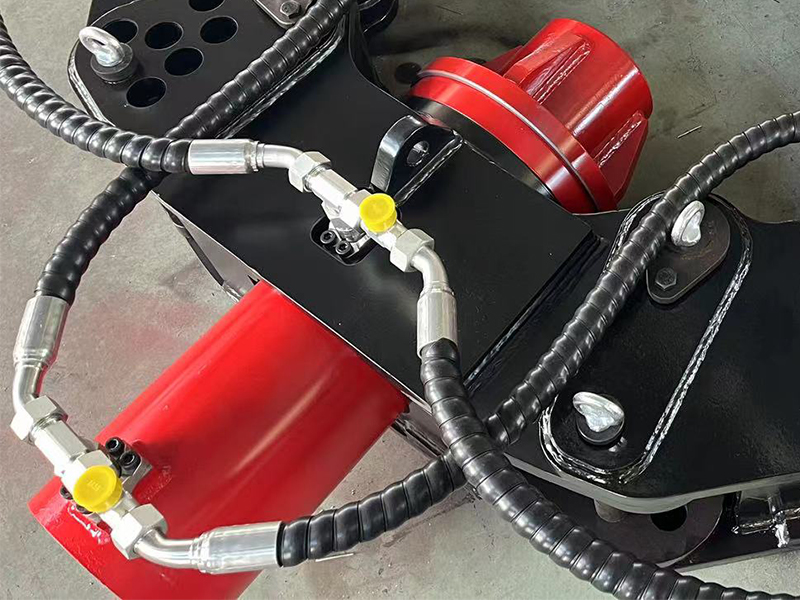

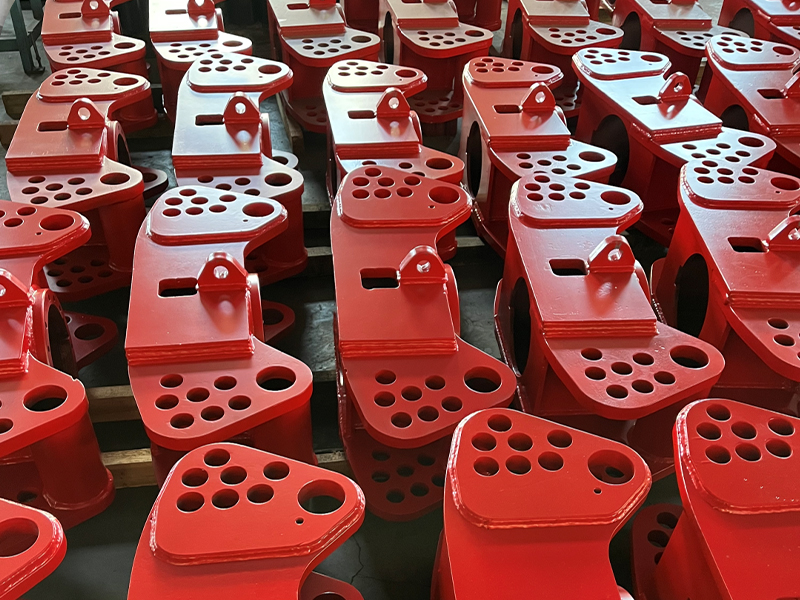

1. It is made of military material by first-class suppliers with reliable quality, extending its service life.
2. The mainboard used Q345B and the chisel used the 42CrMo.
3. 12 month after-sales service.
4. Provide 50 spring pins for free.
5. Professional small tools for free.

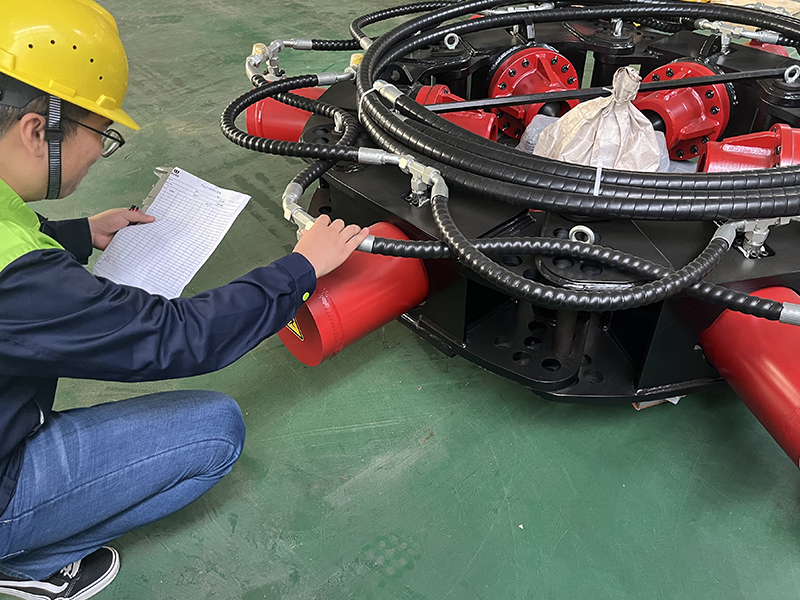

 Pile Breaker Packing & Shipping

 Pile Breaker Videos

 Pile Breaker Catalogue

2024-06-04 171

2024 RAY Excavator Attachments Catalogue.pdf

download
View More

2023-05-04 178

2022 RAY Excavator Attachments Catalogue.pdf

download
View More

2023-05-04 80

2023 RAY Pile Breaker Catalogue.pdf

download
View More

Related Excavator Attachments

Hydraulic Shear/ Crusher
Vibro Ripper
Drum Cutter
Rock Saw

Cooperation Process

Step.1
Send your inquiry
Step.2
Quote price
Step.3
Negotiate price and lead time
Step.4
Sign the contract
Step.5
Payment and production
Step.6
Inspection
Step.7
Shipment

Pile Breaker FAQ

  • What pipeline is connected to the pile breaker on the excavator?

    Connect the hydraulic oil line of bucket cylinder of the excavator to the oil line of the pile breaker's cylinder through the balance valve.

  • The cylinder will damaged when we use pile breaker?

    It does not affect the cylinder because our structure is different from other suppliers. Our reaction force acts on the flange, not the cylinder.

  • Vulnerable parts of Pile Breaker

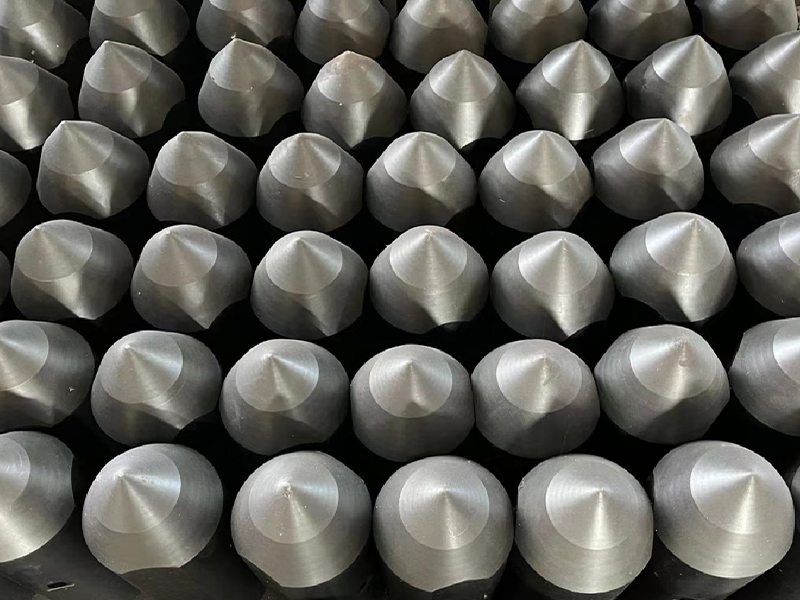

    Pin & Chisel : Normally, our chisel don't need to be changed as long as the worker operate in properly.

  • What's the material of chisel? How much service life?

    Warranty is 12 months except wear parts( Elastic pin & Chisels, Chisel service life is around 10,000 time). But you should operate it in correctly.

  • What is a pile breaker?

    a. Pile breaker is a equipment to demolish the pile effectively and without noise pollution. ( Noise level 70dB(A) )
    b. The modular design of the pile breakers enables then to be used on piles of various size from 300-1800mm in diameter for the round piles, and 200-800 to the square piles.
    c. The hydraulic flow and pressures are available, the pile breaker can be hung from a large variety of equipment, excavator , cranes etc.

  • Why pile chipping is done?

    Pile crushing is the excess pile above the cutoff level, which has resulted in good sound concrete. The main purpose of crushing is to remove the excess muddy concrete (a mixture of concrete, mud and silt) above the cutoff level.

  • Why is it called a pile?

    The pile cut-off level is the actual level at which the piles must be leveled under the pile. The concrete in the pile is cut to the specified level (indicated in the specifications or drawings, usually about 75 mm) while the steel extends into the pile cap to create an effective bond.

  • How much pile diameter range?

    round piles: 300mm-2000mm
    square piles: 300-550mm

  • Why choose Ray Attachments pile breaker?

    1. We are navigator of Chinese pile breaker and we have professional technology team,produce team and Sales team.
    2.We are different with others.
    Cylinder : Cylinder postion is in middle has longer service life than cylinder position is in rear. And reduce the damage of other parts.
    Chisel: we use material 20CrMoNi  other: 42CrMo. More durable
    Different craft : After Three types chisel for different diameter.
    Tip kit: Each module is supplied with three cylinder tips
    Silent attachment: virtually silent operations for environmentally friendly sites
    Pipe Protection: The special shape of the pile breaker is also designed to ensure the protection of the hydraulic system in every working condition.


  • How many piles does it cut per hour?/How is pile breaker performance?

    For example:
      Square piles:
      SP400, diameter: 300mm, 150piles/8 hours, cutting length: 1m. ( Concrete grade: C30)
      SP500, Diameter: 400mm, 110 piles/ 8 hours, cutting length: 1m. ( Concrete grade: C30)
      Round piles:
      SP380, Diameter: 800mm, 60 piles/ 8 hours, cutting length: 1m. ( Concrete grade: C30)
      SP800, Diameter: 800-1800mm, 40-100 piles/ 8 hours, cutting length: 1m. ( Concrete grade: C30)

  • What kind pile breaker do you have? Round or square or both?

    Square: SP400:300-400mm, SP500:400-500mm. SP600: 300-550mm.
    Round: SP300: 300-1050mm, SP800:500-2000mm.
