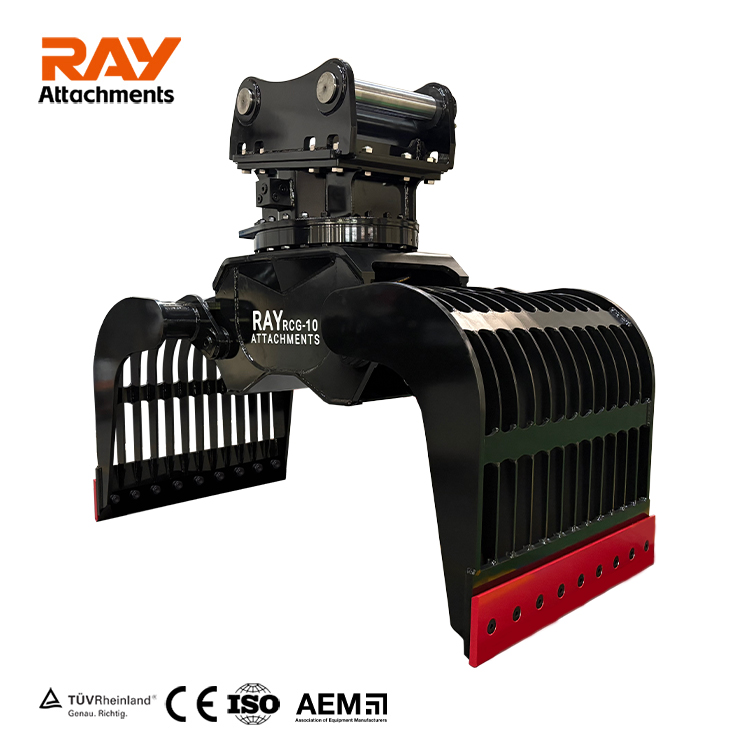

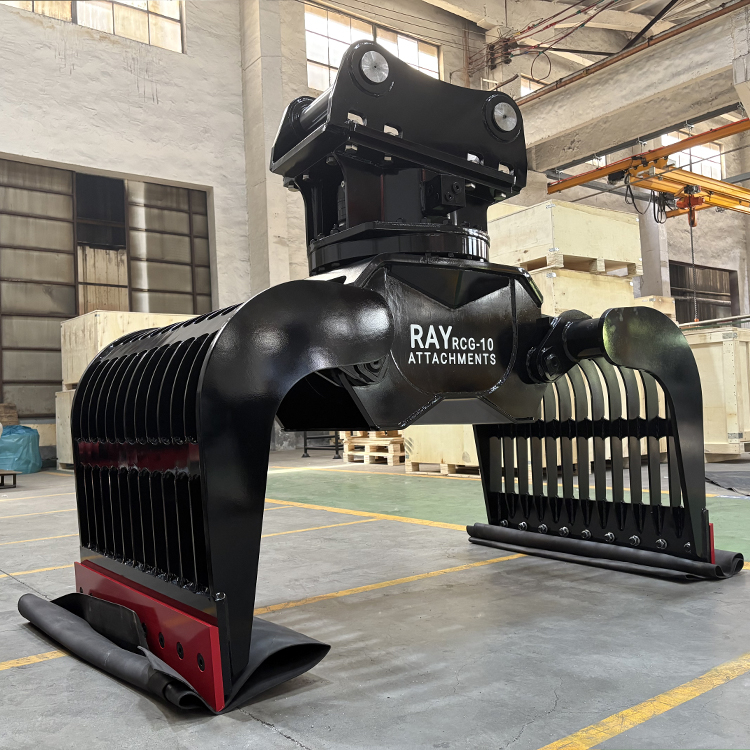

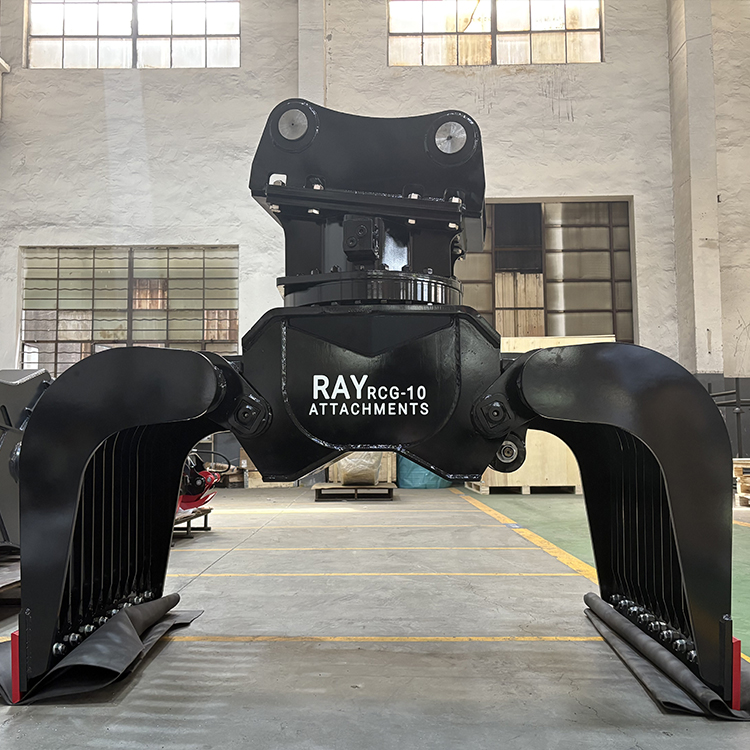

RCG-10
RAY ATTACHMENTS
Availability: | |
---|---|
Demolition grabs are a versatile tool for the selective demolition sorting and reclamation of varied materials. They are widely used in the demolition industry for primary stripping works and then subsequent clearance of sites, they are also a useful partner for the sorting and selection of skip and green waste and are used extensively at waste transfer and sorting yards.
Advantages
* Unlimited 360° Hydraulic Rotation Motor from Parker.
* Reversible and changeable wear blades to extend service life.
* The use of wear-resistant material makes it durable - HARDOX 450/NM400.
* Several sets of shells are available, customizable on request (recycling, demolition, handling).
* Fully guarded, high-pressure cylinders.
* Opening/Closing lock valve optional.
* Bolt-On Mounting Bracket, multi-option - MS/CW series.
Model | RCG-01 | RCG-02 | RCG-04 | RCG-06 | RCG-08 | RCG-10 | RCG-14 | RCG-17 |
Carrier (Ton) | 2.5-4.5 | 4-6 | 6-10 | 10-15 | 16-22 | 23-26 | 27-30 | 31-37 |
Cylinder (Bar) | 250 | 300 | 350 | 350 | 350 | 350 | 350 | 350 |
Cylinder (Liters/min) | 8-15 | 10-20 | 15-30 | 30-65 | 40-80 | 55-110 | 55-110 | 95-165 |
Cylinder (Safety valve) | N | N | N | Y | Y | Y | Y | Y |
360° Rotation (Bar) | 100 | 100 | 100 | 140 | 140 | 140 | 140 | 140 |
360° Rotation (Liters/min) | 6-9 | 8-12 | 8-12 | 12-20 | 12-20 | 14-20 | 14-20 | 28-40 |
360° Rotation (Tr/min) | 10/15 | 10/15 | 10/15 | 10/15 | 10/15 | 10/15 | 10/15 | 10/15 |
Force (N) | 12000 | 19000 | 25000 | 40000 | 50000 | 60000 | 62000 | 93000 |
A (mm) | 1090 | 1180 | 1290 | 1710 | 1845 | 2000 | 2100 | 2270 |
B (mm) | 770 | 850 | 960 | 1245 | 1375 | 1440 | 1465 | 1630 |
C (mm) | 770 | 840 | 910 | 905 | 1000 | 1050 | 1190 | 1275 |
D (mm) | 760 | 850 | 930 | 1080 | 1100 | 1290 | 1375 | 1425 |
L (mm) | 400 | 460 | 550 | 800 | 900 | 1010 | 1130 | 1210 |
Volume (L) | 77 | 105 | 147 | 395 | 470 | 700 | 820 | 1080 |
Weight (Kg) | 210 | 260 | 370 | 745 | 950 | 1230 | 1500 | 2100 |
