Item | Unit | CR5R | CR15R | CR20R | CR26R |
Excavator weight | t | 5-14 | 14-18 | 18-24 | 24-35 |
Tool weight | kg | 530 | 1600 | 2100 | 2800 |
Cyline force | t | 50 | 100 | 132 | 157 |
Force at upper tips F1 (front teeth) | t | 34 | 64 | 84 | 92 |
Force in the middle F2 (middle of blade) | t | 51 | 99 | 127 | 142 |
Cutting force F3 | t | 141 | 284 | 329 | 392 |
Hydraulic working pressure | bar | 200-250 | 280-320 | 280-320 | 280-320 |
Oil flow | l/min | 50-90 | 130-150 | 180-320 | 220-250 |
Rotation type | / | 360°H | 360° H | 360° H | 360° H |
Hydraulic motor max oil pressure | bar | 90-100 | 90-100 | 90-100 | 90-100 |
Hydraulic motor oil flow | l/min | 30-40 | 30-40 | 30-40 | 30-40 |
Time of closing at max oil flow | s | 3.79 | 2,5 | 2,2 | 2,3 |
Time of opening at max oil flow | s | 2.31 | 2,5 | 3,7 | 4 |
N° of cycles per minute at max oil flow | cycles/min | 9.8 | 12 | 10 | 9,4 |
N° of revs per minute at max oil flow | revs/min | 9.8 | 12 | 11 | 11 |
Hyd.ports size cylinder | / | ½" SAE | ¾" SAE | 1" SAE | 1" SAE |
6000 p.s.i. | 6000 p.s.i. | 6000 p.s.i. | 6000 p.s.i. | ||
Hyd.ports size rotation | / | ½" GAS | ½" GAS | ½" GAS | ½" GAS |
Hyd.port size drain line | / | N,N | N,N | N,N | N,N |
Speed valve | / | NO | YES | YES | YES |
Max diameter to be cut** | mm | 36 | 50 | 58 | 63 |
Blade length | mm | 140 | 200 | 200 | 250 |
Interchangeable wear parts | / | NO | NO | NO | NO |
Automatic grease system | / | NO | NO | NO | NO |
Item | Unit | MCP480 | MCP600 | MCP700 | MCP800 | MCP910 |
Excavator weight | t | 4-10 | 10-18 | 16-22 | 18-25 | 25-35 |
Tool weight | kg | 450 | 1000 | 1650 | 2050 | 2850 |
Cylinder force | t | 71 | 100 | 120 | 145 | 157 |
Jaw opening | mm | 480 | 530 | 820 | 850 | 1000 |
Force at upper tips F1 (front teeth) | t | 39 | 54 | 66 | 73 | 99 |
Force in the middle F2 (middle of blade) | t | 60 | 79 | 93 | 115 | 153 |
Cutting force F3 | t | 130 | 155 | 222 | 196 | 276 |
Hydraulic working pressure | bar | 220-280 | 280-320 | 280-320 | 280-320 | 280-320 |
Oil flow | l/min | 80-100 | 100-180 | 100-180 | 180-220 | 220-280 |
Rotation type | NO ROT. | NO ROT. | NO ROT. | NO ROT. | NO ROT. | |
Time of closing at max oil flow | s. | 3,4 | 3,09 | 2.28 | 2,28 | 2,94 |
Time of opening at max oil flow | s. | 2,4 | 1,88 | 2.25 | 2,26 | 2,74 |
N°of cycles per minute at max oil flow | cycles/min | 10,4 | 12,1 | 15 | 13,2 | 10,6 |
Hyd. ports size cylinder | / | 1/2''SAE 6000 p.s.i. | 1'' SAE 6000 p.s.i. | 1'' SAE 6000 p.s.i. | 1'' SAE 6000 p.s.i. | 1''1/4 SAE 6000 p.s.i. |
Speed valve | / | NO | Optional | Yes | Yes | Yes |
Max diameter to be cut | mm | 25 | 50 | 50 | 55 | 60 |
Blade length | mm | 120 | 122 | 200 | 180 | 180 |
Interchangeable wear parts | / | NO | NO | NO | Yes | Yes |
Automatic grease system | / | NO | NO | NO | NO | NO |
Item | Unit | RP16 | RP18 | RP25 |
Excavator weight | t | 16-23 | 18-26 | 26-32 |
Tool weight | kg | 1720 | 2000 | 2750 |
Cyline force | t | 100 | 145 | 158 |
Force at upper tips F1 (front teeth) | t | 55 | 71 | 83 |
Force in the middle F2 (middle of blade) | t | 85 | 112 | 129 |
Cutting force F3 | t | 207 | 230 | 271 |
Hydraulic working pressure | bar | 300-350 | 300-350 | 300-350 |
Oil flow | l/min | 180-200 | 180-200 | 200-220 |
Rotation type | 360° hydraulic | |||
Hydraulic motor max oil pressure | bar | 90-100 | 90-100 | 90-100 |
Hydraulic motor oil flow | l/min | 30-40 | 30-40 | 30-40 |
Time of closing at max oil flow | s | 2,78 | 1,36 | 2,28 |
Time of opening at max oil flow | s | 1,69 | 2,31 | 2,26 |
N° of cycles per minute at max oil flow | cycles/min | 13,4 | 16,3 | 13,2 |
N° of revs per minute at max oil flow | revs/min | 11,5 | 11,5 | 8,1 |
Hyd.ports size cylinder | / | 1’’ SAE | 1’’ SAE | 1’’ SAE |
6000 p.s.i. | 6000 p.s.i. | 6000 p.s.i. | ||
Hyd.ports size rotation | / | ½ ‘’GAS | ½ ‘’GAS | ½ ‘’GAS |
Hyd.port size drain line | / | N.N. | N.N. | N.N. |
Speed valve | / | NO | Yes | Yes |
Max diameter to be cut | mm | 50 | 55 | 61 |
Blade length | mm | 180 | 220 | 300 |
Interchangeable wear parts | / | Yes | Yes | Yes |
Automatic grease system | / | NO | NO | NO |

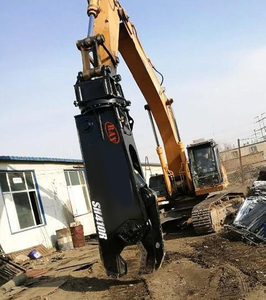

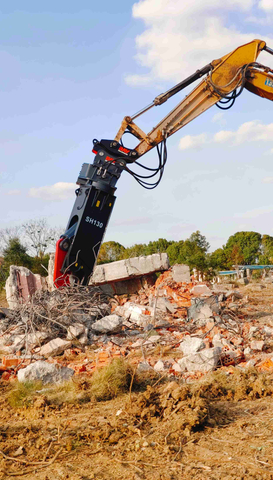

Item | unit | SH25 | SH50R | SH130R | SH180R | SH310R | SH410R | SH550R |
Jaw opening (A) | mm | 195 | 290 | 375 | 445 | 565 | 670 | 760 |
Jaw depth(B) | mm | 200 | 290 | 395 | 525 | 630 | 720 | 780 |
Length(C) | mm | 1350 | 1900 | 2100 | 2700 | 3300 | 3700 | 3950 |
Cylinder Force | t | 38 | 53 | 76 | 109 | 145 | 200 | 247 |
Force at upper tips F1 | t | 36 | 46 | 55 | 75 | 110 | 151 | 185 |
Cutting force F2 (main blade centre) | t | 66 | 88 | 138 | 198 | 286 | 413 | 478 |
Force at pin F3 | t | 200 | 330 | 472 | 770 | 1031 | 1372 | 1810 |
Excavator Weight with bucket place | t | 4-6 | 6-10 | 13-17 | 18-27 | 28-39 | 39-50 | 51-65 |
Excavator Weight with stick place | t | 2-4 | 4-6 | 8-12 | 14-18 | 20-28 | 28-39 | 39-45 |
Tool Weight | kg | 380 | 650 | 1220 | 2100 | 3300 | 4700 | 5750 |
Hydraulic working pressure | bar | 200-250 | 250-300 | 250-300 | 320-350 | 320-350 | 320-350 | 320-350 |
Oil flow | l/min | 60-100 | 90-120 | 90-110 | 150-200 | 200-250 | 250-300 | 275-375 |
Max hydraulic motor oil pressure | bar | 190-200 | 90-100 | 90-100 | 90-100 | 100-115 | 100-115 | 100-115 |
max motor oil flow | l/min | 10-15 | 15-20 | 30-40 | 30-40 | 30-40 | 30-40 | 30-40 |
Speed valve | N | N | Y | Y | Y | Y | Y | |
Interchangeable spare parts | Y | Y | Y | Y | Y | Y | Y |
Model | Unit | RCD04 | RCD06 | RCD08 | RCD10 |
Oil Pressure | bar | 160 | 200 | 280 | 320 |
Cylinder Diameter | Φ | 60 | 160 | 200 | 200 |
Blade Length | mm | 298 | 450 | 570 | 570 |
Jaw Opening | mm | 502 | 693 | 882 | 857 |
Material | hb | NM400 | NM400 | NM400 | NM400 |
Rotary | ° | 360 | 360 | 360 | 360 |
Cylinder | pcs | 1 | 1 | 1 | 1 |
Max Cutting Force | ton | 107 | 155 | 200 | 220 |
Size | mm | 1680*730*420 | 2190*870*630 | 2570*1050*720 | 2650*1100*750 |
Weight | kg | 570 | 1290 | 1995 | 2050 |
Excavator | ton | 5-10 | 12-18 | 18-25 | 26-35 |

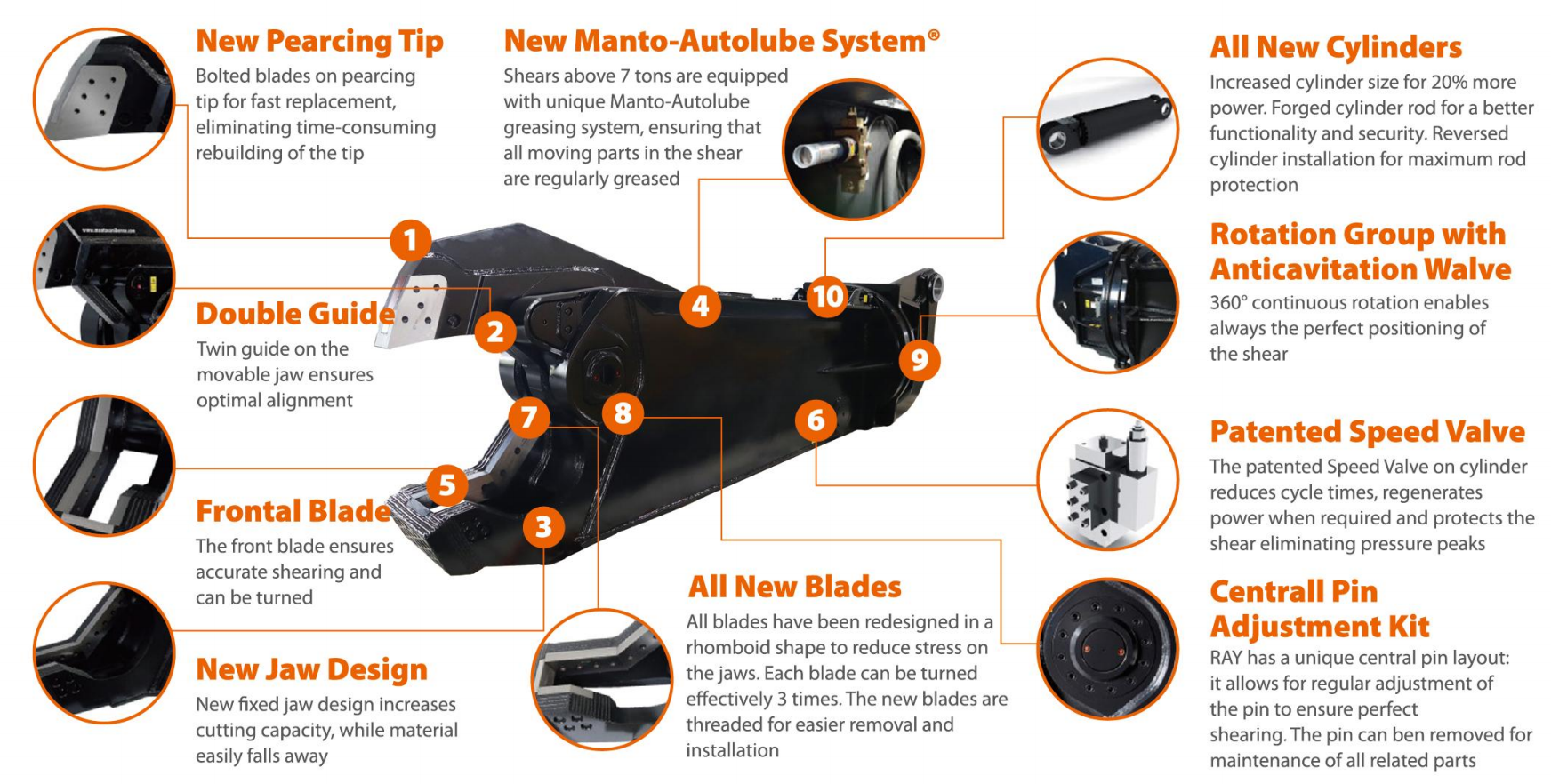

1. New Pearcing Tip: Bolted blades on piecrcing tip for fast Replacement.Eliminates time consuming rebuilding of the tip.
2. Double Guide: Twin guide for the movable jaw,ensures perfect alignment.
3. Frontal Blade: The front blade ensure accurate shearing with the tip and can be turned.
4. New Jaw design: New fixed jaw design increase cutting capacity,material is eased to fall away easily.
5. All New Blades: All the blades have been redesigned in a rhomboid shape to reduce stress on the jaw.Each blade can be turned effectively 3 times.The new blade are threaded for easier removal and installation.
6. Central Pin Adjustment Kit: Mantovanibenne have a unique central pivot pin layout. This allows for regular adjustment of the pin to ensure perfect shearing. While fully protected the pin can be removed for maintenance of all related parts.
7. Special Speed Valve: Reduced cycle times Regenerating power when required.Protection for the shear eliminating pressure peaks.
8. Rotating Group with Anticavitation Valve: 360° continuous rotation. Always the best positioning of the shear.
9. All New Cylinders: Increased cylinder size for 20% more power. Forged cylinder rod for a better functionality and security . Reversed cylinder installation for full rod protection.
10. A unique total shear greasing system, ensuring all moving parts are regularly greased.
