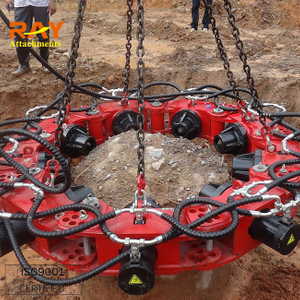

SP800-8 Adjustable Chain Hydraulic Round Pile Breaker SP800 with Hydraulic Cylinder

Products

Home / Products / Pile Breaker / Round Type / SP800-8 Adjustable Chain Hydraulic Round Pile Breaker with Hydraulic Cylinder

Product Category

Product Description

SP800-8 Adjustable Chain Hydraulic Round Pile Breaker Video

Why Choose Us?

Are you tired to break the piles by manpower?

Dangerous , Slowly , Noisy , Expensive salary and so on.

Don’t worry. Ray pile breaker for sale will help you!

Your problems	How can we solve it?
Dangerous	1. Contact-free operation is enabled. 2. And it imposes no impact force on the parent body of the pile and no influence on the bearing capacity of the pile.
Slowly	1.Replaceable and changeable module combination makes its applicable for piles with various diameters. 2.The modules can be assembled and disassembled easily and conveniently.
Noisy	Its full hydraulic drive causes little noises during operation and no influence on the surrounding environments
Expensive salary	1.Fewer operating workers are required to save cost for labor and machines maintenance during construction. 2.Suitable for different kinds of carrier. 3.Module generalization is realized with our SP380 and SP400-Bsquare pile machine. It can be used for both circular piles and square piles by changing the module combination
Nondurable	1. It is made of military material by first-class suppliers with reliable quality, extending its service life. 2.The mainboard used Q345B and the chisel used the 42Crmo. 3.12 month after-sales service. 4.Provide 50 spring pins for free. 5.Professional small tools for free.

Types

RAY pile breaker (Square)

Model	Unit	SP400 (Light)	SP500 (Light)	SP600 (Heavy)	SP600-8 (Heavy)
Range of pile breaker	mm	300-400	400-500	300-550	600-800
Max force for single rod	KN	320	320	790	790
Max stroke of hydraulic cylinder	mm	150	150	205	205
Pressure of hydraulic cylinder	Mpa	34.3	34.3	34.3	34.3
Max flow for single cylinder	L/min	25	25	25	25
Max height for each crush	mm	≤300	≤300	≤300	≤300
Suitable carrier	T	≥8	≥15	≥20	≥26
Single moulde weight	kg	110	220	400	700
Single module size	mm	604594286	595980275	910780400	908×780×400
Dimensions at working	mm	160016002000	171017102500	205020502000	240024002500
Total pile breaker weight	kg	650	950	2000	3200

RAY pile breaker (SP380-Round)

Model	Unit	SP380	SP380	SP380	SP380	SP380	SP380
Moduld number	modules	7	8	9	10	11	12
Range of pile breaker	mm	300-400	450-500	550-625	650-750	800-900	900-1050
Max force for single rod	KN	350	350	350	350	350	350
Max stroke of hydraulic cylinder	mm	150	150	150	150	150	150
Pressure of hydraulic cylinder	Mpa	32-35	32-35	32-35	32-35	32-35	32-35
Max flow for single cylinder	L/min	25	25	25	25	25	25
Max height for each crush	mm	≤300	≤300	≤300	≤300	≤300	≤300
Suitable carrier	T	12	13	15	21	21	21
Single moulde weight	kg	110	110	110	110	110	110
Total pile breaker weight	kg	920	1030	1500	1250	1360	1470

RAY pile breaker (SP800-Round)

Model	Unit	SP800	SP800	SP800	SP800	SP800	SP800	SP800	SP800
Moduld number	modules	6	7	8	9	10	11	12	13
Range of pile breaker	mm	500-600	650-800	850-1000	1050-1200	1250-1400	1450-1600	1650-1800	1850-2000
Max force for single rod	KN	650	650	650	650	650	650	790	650
Max stroke of hydraulic cylinder	mm	215	215	215	215	215	215	215	215
Pressure of hydraulic cylinder	Mpa	32-35	32-35	32-35	32-35	32-35	32-35	32-35	32-35
Max flow for single cylinder	L/min	25	25	25	25	25	25	25	25
Max height for each crush	mm	≤300	≤300	≤300	≤300	≤300	≤300	≤300	≤300
Suitable carrier	T	20	22	26	27	30	32	35	36
Single moulde weight	kg	380	380	380	380	380	380	380	380
Total pile breaker weight	kg	2335	2720	3100	3480	3860	4240	4620	5000

If you are interested in our hydraulic pile breaker, please tell us pile diameter which you will break, the grade of concrete,
round pile or square pile, the concrete reinforcement arrangement. We will introduce suitable model to you.
Welcome to visit our factory, If you have any questions, please feel free to contact me.
