Applications

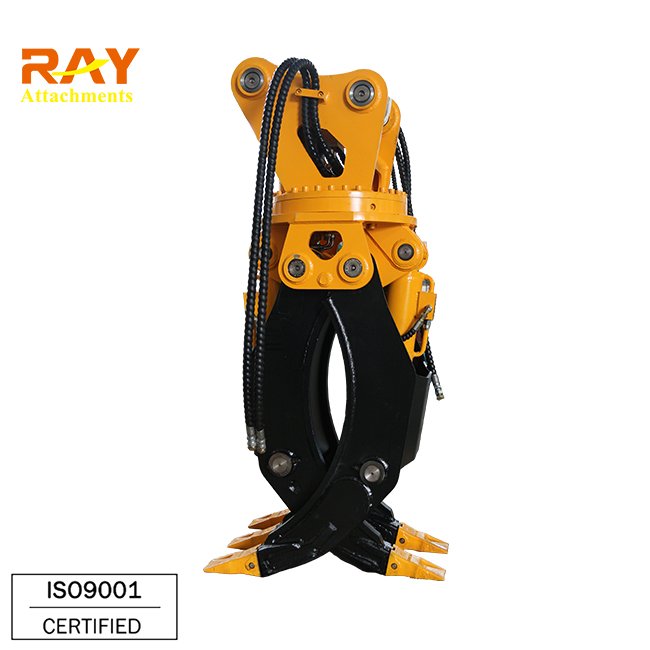

Grab is a lifting appliance which depend on jaw opening and closing crawl and unloading bulk material.
According to be stacked capture material density is divided into light, medium, heavy, and super heavy.
So it can handle of wood, pipes, disposable waste, landscaping works and many others.
Wood Type: No teeth That's enough to carry the wood.
1. Unlimited clockwise and anti-clockwise 360 degree rotatable. Special designed swing bearing for durability and big cylinder for more power.
2. Check valve is embedded for better safety shock value enclosed for better safety from damage.
3. Wear resistant special solid steel is used and no extra reinforcement is requirement.
4. The wide opening width with light weight, not only outstanding performance handling the iron bar but also maximize his operation efficiency with light weight.
5. Minimized hydraulic trouble which may occur during rotating works.
How to choose the Wood grapple
1.Make sure of the weight of your carrier.
2.Make sure of the oil flow of your excavator.
3.Make sure of the wood which you want to carry.
Model | unit | RHG06 |
Weight | Kg | 740 |
Jaw opening | mm | 1800 |
Working pressure | Kg/cm² | 150-170 |
Setting pressure | Kg/cm² | 190 |
Oil flow | l/m | 90-110 |
Max Cylinder Force | KG | 1600 |
Carrier | ton | 9-16 |
* This specifications are subject to change without prior notice for the improvement of quality. | ||
Operation Notice:
1. Do not board personnel on the excavator arm or on grapple.
2. When operating the grapple, do not drop the object on the grapple and do not give any impact on the grapple arm. Otherwise, it may damage the grapple and the excavator both.
3. If one of the grapple arm touched the ground and the tooth clamped into the ground, do not change the direction forcibly. Because of such forcible movement, the power transfer to the grapple can be affected.
4. For the demolition work of steel beam or column, do not rotate or twist while the grapple is holding such material. Forcible rotation or twist can damage the rotation motor or swing gear. Rotating should be performed only on vertical condition.
5. Inject grease regularly on the swing bearing, grapple-pins, cylinder-pins and link-pins.
Spare parts:
1.Two hand shank
2.Four pcs of oil hose
3.One piece of tool box
4.Four sets hard pipe and pipe clamp
5.One piece of hydraulic grapple
6.One set of valve
