Leading Hydraulic Shear/ Crusher Manufacturer in China Since 2002

1. Original Manufacturer with Competitive Price
2. OEM Experience for World Famous Excavator
3. 12 Months Warranty

Hydraulic Shear/Crusher

CR Hydraulic Crusher
MCP Fixed Pulverizer
RP Rotation Pulverizer
SH Eagle Shear
Car Dismantler

Can't Find Ideal Hydraulic Shear/ Crusher For Your Industries?

We provide custom solutions to all our customers and offer hydraulic shear/crusher that you can take advantage of.

About RAY Attachments: Your Expert Hydraulic Shear/Crusher Supplier

RAY Attachments is a leading manufacturer of Hydraulic Shear/Crusher in China. All products' quality is strictly under control from processing to delivery. Through continuous innovation and improvement, the company has got ISO 9001, CE Certifications, and Technical Patents successively. Our products have been sold to widely domestic and overseas customers and long-term partnerships have been developed.

Contact Our Support Team

Hydraulic Shear/Crusher Technical Parameters

Hydraulic Shear/Crusher Products

SH Series Hydraulic Scrap Metal Shear for Cutting Steel

SH25 Mobile Demolition Eagle Shear

Hydraulic Shear Cutter SH50R

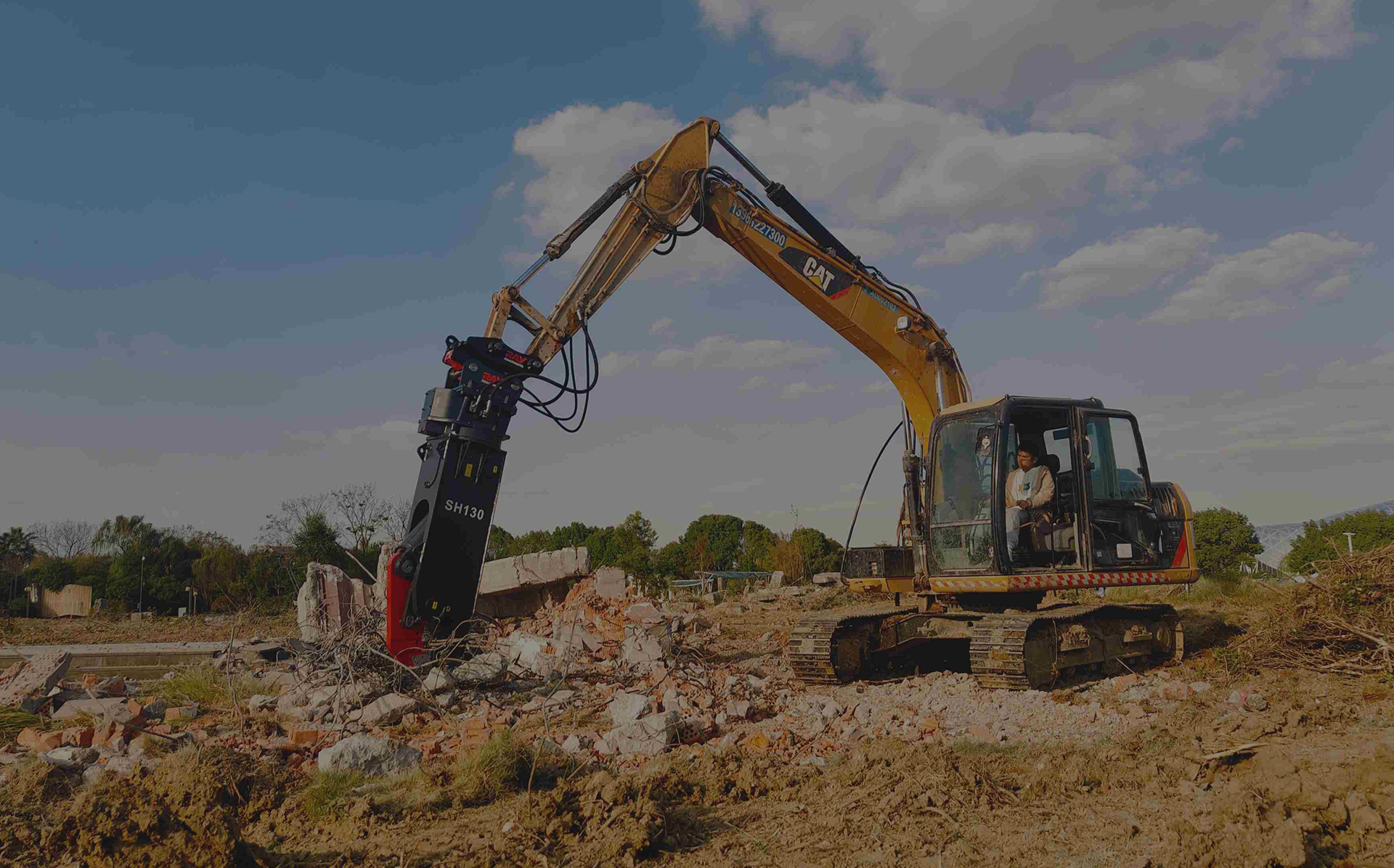

Hydraulic Shear Attachment SH130R

Hydraulic Shear Cutting Machine SH180R

China Hydraulic Shear SH310R

Hydraulic Metal Shear Factory SH410R

SH550R Hydrualic Eagle Shear for Cutting Metal

Hydraulic Shear Excavator SH700R

CR Series Rotary Hydraulic Crusher Pulverizer

Rotary Excavator Demolition Crusher Pulverizer CR5R

Hydraulic Crusher for Sale CR15R

Hydraulic Stone Crusher CR20R

Oem Hydraulic Crusher Demolition CR26R

MCP Series Excavator Fixed Pulverizer Supplier

Fixed Pulverizer for Sale MCP480

Hydraulic Crusher Fixed Type Pulverizer MCP600

Excavator Fixed Pulverizer MCP700

OEM Fixed Pulverizer MCP800

Hydraulic Concrete Fixed Pulverizer for Sale MCP910

RP Series Excavator Demolition Rotation Pulverizer for Sale

Rotation Pulverizer for Sale RP16

Excavator Rotation Pulverizer RP18

Rotation Pulverizer for Excavator RP25

Request a Quick Quote

Hydraulic Shear/Crusher Specifictaion

RAY CR Series Crusher

Item	Unit	CR5R	CR15R	CR20R	CR26R
Excavator weight	t	5-14	14-18	18-24	24-35
Tool weight	kg	530	1600	2100	2800
Cyline force	t	50	100	132	157
Force at upper tips F1 (front teeth)	t	34	64	84	92
Force in the middle F2 (middle of blade)	t	51	99	127	142
Cutting force F3	t	141	284	329	392
Hydraulic working pressure	bar	200-250	280-320	280-320	280-320
Oil flow	l/min	50-90	130-150	180-320	220-250
Rotation type	/	360°H	360° H	360° H	360° H
Hydraulic motor max oil pressure	bar	90-100	90-100	90-100	90-100
Hydraulic motor oil flow	l/min	30-40	30-40	30-40	30-40
Time of closing at max oil flow	s	3.79	2,5	2,2	2,3
Time of opening at max oil flow	s	2.31	2,5	3,7	4
N° of cycles per minute at max oil flow	cycles/min	9.8	12	10	9,4
N° of revs per minute at max oil flow	revs/min	9.8	12	11	11
Hyd.ports size cylinder	/	½" SAE	¾" SAE	1" SAE	1" SAE
Hyd.ports size cylinder	/	6000 p.s.i.	6000 p.s.i.	6000 p.s.i.	6000 p.s.i.
Hyd.ports size rotation	/	½" GAS	½" GAS	½" GAS	½" GAS
Hyd.port size drain line	/	N,N	N,N	N,N	N,N
Speed valve	/	NO	YES	YES	YES
Max diameter to be cut**	mm	36	50	58	63
Blade length	mm	140	200	200	250
Interchangeable wear parts	/	NO	NO	NO	NO
Automatic grease system	/	NO	NO	NO	NO

RAY MCP Series Pulverisers

Item	Unit	MCP480	MCP600	MCP700	MCP800	MCP910
Excavator weight	t	4-10	10-18	16-22	18-25	25-35
Tool weight	kg	450	1000	1650	2050	2850
Cylinder force	t	71	100	120	145	157
Jaw opening	mm	480	530	820	850	1000
Force at upper tips F1 (front teeth)	t	39	54	66	73	99
Force in the middle F2 (middle of blade)	t	60	79	93	115	153
Cutting force F3	t	130	155	222	196	276
Hydraulic working pressure	bar	220-280	280-320	280-320	280-320	280-320
Oil flow	l/min	80-100	100-180	100-180	180-220	220-280
Rotation type		NO ROT.	NO ROT.	NO ROT.	NO ROT.	NO ROT.
Time of closing at max oil flow	s.	3,4	3,09	2.28	2,28	2,94
Time of opening at max oil flow	s.	2,4	1,88	2.25	2,26	2,74
N°of cycles per minute at max oil flow	cycles/min	10,4	12,1	15	13,2	10,6
Hyd. ports size cylinder	/	1/2''SAE 6000 p.s.i.	1'' SAE 6000 p.s.i.	1'' SAE 6000 p.s.i.	1'' SAE 6000 p.s.i.	1''1/4 SAE 6000 p.s.i.
Speed valve	/	NO	Optional	Yes	Yes	Yes
Max diameter to be cut	mm	25	50	50	55	60
Blade length	mm	120	122	200	180	180
Interchangeable wear parts	/	NO	NO	NO	Yes	Yes
Automatic grease system	/	NO	NO	NO	NO	NO

RAY RP Series Pulverizers

Item	Unit	RP16	RP18	RP25
Excavator weight	t	16-23	18-26	26-32
Tool weight	kg	1720	2000	2750
Cyline force	t	100	145	158
Force at upper tips F1 (front teeth)	t	55	71	83
Force in the middle F2 (middle of blade)	t	85	112	129
Cutting force F3	t	207	230	271
Hydraulic working pressure	bar	300-350	300-350	300-350
Oil flow	l/min	180-200	180-200	200-220
Rotation type		360° hydraulic
Hydraulic motor max oil pressure	bar	90-100	90-100	90-100
Hydraulic motor oil flow	l/min	30-40	30-40	30-40
Time of closing at max oil flow	s	2,78	1,36	2,28
Time of opening at max oil flow	s	1,69	2,31	2,26
N° of cycles per minute at max oil flow	cycles/min	13,4	16,3	13,2
N° of revs per minute at max oil flow	revs/min	11,5	11,5	8,1
Hyd.ports size cylinder	/	1’’ SAE	1’’ SAE	1’’ SAE
Hyd.ports size cylinder	/	6000 p.s.i.	6000 p.s.i.	6000 p.s.i.
Hyd.ports size rotation	/	½ ‘’GAS	½ ‘’GAS	½ ‘’GAS
Hyd.port size drain line	/	N.N.	N.N.	N.N.
Speed valve	/	NO	Yes	Yes
Max diameter to be cut	mm	50	55	61
Blade length	mm	180	220	300
Interchangeable wear parts	/	Yes	Yes	Yes
Automatic grease system	/	NO	NO	NO

RAY SH Series Eagle Shear

Item	unit	SH25	SH50R	SH130R	SH180R	SH310R	SH410R	SH550R
Jaw opening (A)	mm	195	290	375	445	565	670	760
Jaw depth(B)	mm	200	290	395	525	630	720	780
Length(C)	mm	1350	1900	2100	2700	3300	3700	3950
Cylinder Force	t	38	53	76	109	145	200	247
Force at upper tips F1	t	36	46	55	75	110	151	185
Cutting force F2 (main blade centre)	t	66	88	138	198	286	413	478
Force at pin F3	t	200	330	472	770	1031	1372	1810
Excavator Weight with bucket place	t	4-6	6-10	13-17	18-27	28-39	39-50	51-65
Excavator Weight with stick place	t	2-4	4-6	8-12	14-18	20-28	28-39	39-45
Tool Weight	kg	380	650	1220	2100	3300	4700	5750
Hydraulic working pressure	bar	200-250	250-300	250-300	320-350	320-350	320-350	320-350
Oil flow	l/min	60-100	90-120	90-110	150-200	200-250	250-300	275-375
Max hydraulic motor oil pressure	bar	190-200	90-100	90-100	90-100	100-115	100-115	100-115
max motor oil flow	l/min	10-15	15-20	30-40	30-40	30-40	30-40	30-40
Speed valve		N	N	Y	Y	Y	Y	Y
Interchangeable spare parts		Y	Y	Y	Y	Y	Y	Y

RAY Shear Dismantler

Model	Unit	RCD04	RCD06	RCD08	RCD10
Oil Pressure	bar	160	200	280	320
Cylinder Diameter	Φ	60	160	200	200
Blade Length	mm	298	450	570	570
Jaw Opening	mm	502	693	882	857
Material	hb	NM400	NM400	NM400	NM400
Rotary	°	360	360	360	360
Cylinder	pcs	1	1	1	1
Max Cutting Force	ton	107	155	200	220
Size	mm	1680730420	2190870630	25701050720	26501100750
Weight	kg	570	1290	1995	2050
Excavator	ton	5-10	12-18	18-25	26-35

Hydraulic Shear/Crusher Advantages

1. New Pearcing Tip: Bolted blades on piecrcing tip for fast Replacement.Eliminates time consuming rebuilding of the tip.

2. Double Guide: Twin guide for the movable jaw,ensures perfect alignment.

3. Frontal Blade: The front blade ensure accurate shearing with the tip and can be turned.

4. New Jaw design: New fixed jaw design increase cutting capacity,material is eased to fall away easily.

5. All New Blades: All the blades have been redesigned in a rhomboid shape to reduce stress on the jaw.Each blade can be turned effectively 3 times.The new blade are threaded for easier removal and installation.

6. Central Pin Adjustment Kit: Mantovanibenne have a unique central pivot pin layout. This allows for regular adjustment of the pin to ensure perfect shearing. While fully protected the pin can be removed for maintenance of all related parts.

7. Special Speed Valve: Reduced cycle times Regenerating power when required.Protection for the shear eliminating pressure peaks.

8. Rotating Group with Anticavitation Valve: 360° continuous rotation. Always the best positioning of the shear.

9. All New Cylinders: Increased cylinder size for 20% more power. Forged cylinder rod for a better functionality and security . Reversed cylinder installation for full rod protection.

10. A unique total shear greasing system, ensuring all moving parts are regularly greased.

Consult Your Ray Expert

Hydraulic Shear/Crusher Packing & Shipping

Hydraulic Shear/Crusher Videos

Send Us Your Inquiry Today

Hydraulic Shear/Crusher Catalogue

2022 RAY Demolition Series Catalogue.pdf

10435KB

20

2023-05-04

Hydraulic Shear / Crusher

Copy Link https://www.rayattachments.com/phoenix/admin/download?fileId=fiAUKrYmqCSO&dp=GvUApKfKKUAU

Download

Related Excavator Attachments

Vibro Ripper

Drum Cutter

Rock Saw

Granite Saw Cutter Hydraulic Excavator Rock Saw Attachment for Cutting Rocks

Hydraulic Breaker

Pile Breaker

Cooperation Process

Contact Us Now

Hydraulic Shear/Crusher FAQ

Choose the right fixed pulverizes according to the work to be carried out.

The choice of the right hammer is determined not only by the weight of the carrier, but also by the type of work it has to perform. If a breaker is to be installed on a machine whose weight allows the matching with different hammers, it is essential to evaluate the type of rock to be worked or the severity of the application (frequency of use). Promove also offers a wide range of breakers suitable for special applications such as high temperature processing, underwater applications or tunnelling.
What about the fixed pulverizer advantange?

Hydraulic pulverizers are ideal for high volume processing or low level demolition & dismantling duties. Most suited for secondary crushing and dismantling of low walls and floors due to its “wrist” type action the standard bolt-on mounting permits easy changes between different machines. A steel shear is incorporated in the rear of the jaws to assist in processing rebar encountered within the concrete. All of the models are equipped with a bolt-on replaceable tooth system. This eliminates the downtime of welding and enables easy on-site maintenance an increases attachment availability and uptime.
Which is right fixed pulverizer for your carrier?

Choose with extreme care the hammer suitable to your machine. This will avoid any possible problem and improve the operating performance. It is important to choose the hammer in accordance with the excavator’s hydraulic features (allowed oil flow) and weight. Our team of experts is at your service to advise on the best match.
What's the advantage of fixed pulverizer?

*The highly reinforced structure
*Interchangeable parts ensure quick and easy maintenance
*The shape is designed for working on the ground and for the easy expulsion of the crushed material
*Patented Speed-Valve
How to choose fixed pulverizer?

It is mainly depending on the model for your excavator. It matching range of fixed pulverizer is from 3T to 50T.
What's the fixed pulverizer?

Hydraulic fixed pulverizers are ideal for high volume processing or low level demolition & dismantling duties. It is high efficiency with good performance.
On which carriers can I use rotation pulverizes?

It is possible to install Promove hammers on any type of excavator thanks to the wide range of breakers offered and their ability to adapt to different hydraulic systems.
Choose the right rotation pulverizer according to the work to be carried out.

The choice of the right hammer is determined not only by the weight of the carrier, but also by the type of work it has to perform. If a breaker is to be installed on a machine whose weight allows the matching with different hammers, it is essential to evaluate the type of rock to be worked or the severity of the application (frequency of use). Promove also offers a wide range of breakers suitable for special applications such as high temperature processing, underwater applications or tunnelling.
Which is right rotation pulverizer for your carrier?

Choose with extreme care the hammer suitable to your machine. This will avoid any possible problem and improve the operating performance. It is important to choose the hammer in accordance with the excavator’s hydraulic features (allowed oil flow) and weight. Our team of experts is at your service to advise on the best match.
What about the rotation pulverizer advantange?

The RAY-pulverizers are specially designed hydraulic rotating concrete crushers for primary demolition of buildings and recycling.
The slew ring eliminates the forces on the excavator, and the machine is less stressed.
The shape of the jaws of the crusher designed to crush concrete as effectively as possible.
The pulverizer can easily cut the reinforcement steel within concrete boulders with the steel cutters located in the back of its jaw.
What about the rotation pulverizer feature?

Long Working Life Hydraulic Rotation Easy Operation Fully adaptable with Excavator High Quality wear Resistant Materials.
In what scenarios do we use a rotation pulverizer?

Our Rotation Pulverizer are designed for use in demolition, quarrying and recycling jobs to separate steel from concrete, and to break large chunks into smaller sizes for further crushing.
What are rotation pulverizer strengths?

Innovative, versatile, robust and fast, we simply put our new product composed of a main body which can change quickly the kits can deal with the different situations of the building site.
What are rotation pulverizer functions?

RAY specializes in the design and manufacture of hydraulic equipment for demolition, handling, and recycling of ferrous, construction, and bulk materials. Deep experience and continuous investment in innovative technologies has earned RAY a reputation reliability and quality.
What about the catalytic converters?

Catalytic Converters Exhaust manifold mounted catalytic converters Pull engine to access hard to reach catalytic converters Other high value materials.
How to remove axle and suspension components?

Extra profit from extraction of heavy steel axles and suspension Pin the vehicle down with the clamp legs and use the RAY dismantling grapple to pull the axle and suspension components from the lower value vehicle shell.
What about the out with the engine?

The slender plier-like legs of the grapple make it perfect for seeing into the engine bay to perfectly place the legs around the engine and pull it out in only a few seconds.
What does a dismantling shear look like?

Like a vulture would dissect its prey, the RAY clamp arms pin down the vehicle to allow the grapple to systematically pull the valuable materials away from the lower value vehicle body shell.
What are the benefits of dismantling a car?

Traditional manual methods of removing high value materials from end-of-life cars and vehicles can be labour intensive and costly, in many cases making the process economically unviable. Although a four-tine scrap grab will allow extraction of the engine, much of the added value materials are left behind, resulting in the end of life vehicle dismantler missing out on great potential profit.
What about the car dismantler advantages？

The RAY Car Dismantler is the ultimate combination of power and dexterity. The grapple features a slender, plier-like shape providing an unbroken line of sight from the operator to the vehicle, allowing valuable materials such as the copper wiring loom to be extracted from even the tightest of areas. High power hydraulic cylinders and high torque rotation unit give the RAY Car Dismantler the power to effortlessly dissect the vehicle.

1
2
»

Factory FAQ

Are you a factory or trading company?

We are a manufacturer. We have over 19 years of experience in manufacturing skid steers and skid steers. It is the top producer and exporter in the industry.
Where is your factory located?

Our factory is in #5 ChuangSheng Road, Luoyang Industrial Zone, Luoyang town, Wujin District, Changzhou City, Jiangsu Province, China

It's near Shanghai port. It's about 1 hour by express train or 4 hours by car from Shanghai to our city.
How many days for production delivery?

Ordinarily, it costs 20-25 workdays for 2x40ft containers. Sample order in 5 days.
What are your terms of payment?

Payment≤20000USD,100% in advance. Payment＞20000USD, 30% T/T in advance, balance after production completed. Or LC at sight.
How about quality control in your factory?

Raw material inspection-checking drawing before production-inspect the actual size according to drawing-finished product inspection- testing report-package inspection-qualified certification.
How about guarantee?

We provide 12 months warranty, which has a professional after-sales service team to solve your problems within two hours, 24 hours a day, 7 days.
Purchase notes

(1) As the manufacturing factory, RAY Attachments works in international trade and can handle wholesale orders with containers' capacity.

(2) We aim to find our business partner as our international dealers.
